Selecting the Right Filtration for Amine Sweetening Systems

Filtration in amine sweetening systems is essential for controlling contaminants that can affect amine quality, equipment reliability, and process performance.

Selecting filtration for an amine sweetening system requires more than knowing which amine chemistry is in service. The right filtration approach depends on what is actually entering the amine circuit, how much contamination is present, the physical characteristics of that contamination, operating conditions, and where the filtration step is located in the process.

For engineers responsible for amine unit performance, these details matter. Solids, corrosion products, degradation products, hydrocarbons, and other contaminants can contribute to fouling, foaming, equipment problems, and shortened filter service life. Lean and rich amine streams can also present different contamination profiles and operating demands, so the same filtration approach should not automatically be applied to both.

A sound filtration specification therefore starts with the application, not simply a micron rating or amine type. Understanding the contaminant, its loading and particle-size distribution, the required filtration duty, and the operating envelope provides a more reliable basis for selecting filtration and evaluating existing equipment.

This article outlines the key factors engineers should consider when selecting filtration for lean and rich amine service, from contamination and foaming risk to hydrocarbon state, filter location, differential pressure, and expected service life.

Lean Amine and Rich Amine: Different Streams, Different Filtration Needs.

Lean amine is the regenerated solution that enters the absorber, while rich amine leaves the absorber after absorbing hydrogen sulfide and carbon dioxide. Both streams can carry solids, corrosion products, degradation products, hydrocarbons, and other materials that affect performance, and not all of these materials respond to the same treatment. Particulate filtration addresses suspended solids, coalescing or separation addresses free or dispersed liquid hydrocarbons, and adsorption may address selected dissolved organic contaminants, such as hydrocarbons or degradation products, when testing confirms that the media is appropriate. Ionic contaminants such as heat-stable salts require separate solvent-treatment or reclamation review.

Because lean and rich amine encounter different process conditions, their contamination profiles and filtration duties can also differ.

Selection Factors for Filtration for Amine Sweetening Systems

The factors below should be evaluated together because contaminant type, loading, particle behavior, operating conditions, and filter location all influence the filtration duty. Considering the full application helps engineers determine the required treatment, capacity, equipment protection, and service-life basis for lean or rich amine service.

Contaminant Type

What to establish: What solids, corrosion products, degradation products, hydrocarbons, or dissolved material are present.
Lean amine implication: Contamination may affect solvent cleanliness and downstream equipment protection.
Rich amine implication: The stream may carry material picked up from the absorber and upstream equipment.
Questions to ask: What is present, where was it measured, and what is its physical form?

Contaminant Loading

What to establish: Normal and peak concentration, plus the total amount reaching the filter over time.
Lean amine implication: Higher loading can shorten element life and increase maintenance frequency.
Rich amine implication: Variable loading can increase fouling and make service life less predictable.
Questions to ask: What loading should the filter handle during normal and upset operation?

Particle-Size Distribution

What to establish: The share of material within each measured size band.
Lean amine implication: Fine solids may pass through or blind the media, depending on the selected rating and loading.
Rich amine implication: Fine and coarse solids may arrive together, affecting capacity and differential pressure.
Questions to ask: What does the size distribution show, and how was it measured?

Foaming Tendency

What to establish: Foam events, carryover, and related operating symptoms.
Lean amine implication: Contamination carried into the lean circuit may affect solvent cleanliness and stable operation.
Rich amine implication: Material picked up after absorber contact may contribute to foam and amine carryover.
Questions to ask: When does foaming occur, and what changed before the event?

Hydrocarbon State

What to establish: Free, dispersed, emulsified, or dissolved hydrocarbons.
Lean amine implication: Hydrocarbons may affect solvent quality, element life, and downstream equipment.
Rich amine implication: Hydrocarbons may enter with the gas and complicate separation or drainage.
Questions to ask: What form does the hydrocarbon take, and what outlet condition is required?

Flow and Temperature

What to establish: Normal flow, turndown, peak flow, operating temperature, and viscosity.
Lean amine implication: These conditions establish the hydraulic load and material requirements.
Rich amine implication: These conditions affect capacity, viscosity, drainage, and the response to variable loading.
Questions to ask: What is the complete operating envelope?

Filter Location

What to establish: Side-stream, full-flow, lean, rich, regeneration, or equipment-protection service.
Lean amine implication: The location may support solvent polishing or equipment protection.
Rich amine implication: The location may need to manage higher or more variable loading before downstream equipment.
Questions to ask: What must this filtration step accomplish?

Differential Pressure and Service Life

What to establish: Clean differential pressure, operating trend, change-out point, and maintenance history.
Lean amine implication: The operating trend can help establish a practical replacement interval.
Rich amine implication: The trend may show whether fouling, drainage, or capacity is limiting performance.
Questions to ask: What evidence is needed to trigger a replacement?

With this evaluation framework in place, it helps to start by examining where the contamination actually comes from.

Start With the Contamination Problem

1. Identify what is entering the amine circuit

Contamination can enter the system with incoming gas, makeup chemicals, corrosion inside vessels and piping, degraded solvent, hydrocarbon carryover, or maintenance activity. Common contaminants include entrained particulate and hydrocarbons carried in the feed gas, iron sulfide, amine degradations products, organic acids, well chemicals, anti-foaming agents, carbon fines, and other process-generated solids. Heat-stable salts can also enter in the amine system with the sour gas feed and have bonds strong enough that the heating applied in the regeneration process is insufficient to break them.

The sample result should be evaluated alongside its likely source before defining the filtration duty. This helps distinguish material generated inside the amine circuit from contamination entering continuously through the gas or upstream equipment.

2. Match the physical form to the treatment duty

• Particulate filtration addresses suspended solid particles.
• Coalescing or separation equipment may address free or dispersed liquid aerosols.
• Adsorption, typically using activated carbon beds on the lean amine side, may be needed to remove soluble, surface-active contaminants, traces of hydrocarbon and organic compounds
• Heat-stable salts cannot be removed through conventional filtration technologies and require separate treatment, such as ion exchange

Treating different contaminants as one can lead to premature fouling, poor hydrocarbon control, or a filter that fails to address the suspected cause of the problem.

3. Record the source and the sample basis

Sample the relevant lean and rich locations, identify the contaminant’s physical form, and trace it to its likely source. That information should then be linked to a defined filtration or treatment duty rather than simply attached to a micron-rating request.

Cleanova can review contaminant type, physical form, loading, and particle-size information to help determine whether the application calls for particulate filtration, hydrocarbon separation, adsorption, upstream separation, or a combination of treatment steps.

Establish Contaminant Loading and Particle-Size Distribution

1. Measure loading over time

Contaminant loading includes both the concentration measured in the amine and the total amount reaching the filter over time. A filter may perform well during a short sample period but still have insufficient capacity for a high-loading operating condition.

The specification should distinguish among normal loading, peak loading, and the expected mass or volume that reaches the filter during the service interval. Variable loading is particularly important in rich amine service, where changes in gas composition, upstream separation, corrosion, or operating conditions can change the solids burden. Loading should be evaluated as both a concentration issue and a capacity issue because the same measured concentration can produce different element life under different flow and operating conditions.

2. Interpret particle-size data correctly

Particle-size distribution provides another selection basis. It shows how much of the measured material falls within each size band. Coarse particles may be removed easily while fine particles pass through, load the media more quickly, or contribute to surface blinding.

A micron rating alone does not fully define filter performance. For particulate filters, engineers should confirm whether the rating is nominal or absolute, the test method used, the applicable beta ratio, the media construction, and the contaminant used during testing. Particle shape, concentration, flow rate, viscosity, and differential pressure can also affect actual performance.

A lower micron number is not automatically a better choice. Finer media may improve the removal of a particular solid population, but can also increase differential pressure or shorten element life when the contaminant loading is high. The selection should balance the required outlet cleanliness with capacity, hydraulic performance, and replacement frequency.

3. Include the sample method in the specification

The specification should report the contaminant loading and particle-size distribution together. It should also state how the samples were collected, where they were taken, and whether the data represent normal or upset operation.

Cleanova’s application review can connect loading and particle-size results with the expected element capacity, media construction, differential-pressure profile, and change-out frequency. This gives engineers a basis for evaluating current elements and replacement options against actual service conditions.

Assess Inlet Gas Filtration

Before it enters the amine contactor, the inlet sour gas may pass through particulate filtration followed by a phase separator and/or a gas-liquid coalescer to remove suspended solids and a high percentage of liquid hydrocarbons. This is the first filtration stage in the amine system and helps minimise contaminant ingress into the amine loop, reducing the risk of downstream contamination-related issues.

Treat Foaming as a Process Symptom

In the contactor, as the sour feed gas passes upward through the amine, H₂S and carbon dioxide are absorbed into the amine, and this action naturally creates froth on the trays. In a good quality amine with low levels of contamination, this foam dissipates quickly. Problems begin when contaminants stabilize this froth and prevent it from dissipating normally.

1. Understand how particulates can affect foam

Fine particles, including iron sulfide, can contribute to foam stability when they are present with surface-active material. Hydrocarbons, corrosion products, amine degradation products, organic acids, well chemicals, anti-foaming agents, temperature and pressure can also affect foaming tendecy and foaming stability.

2. Connect foam events to filtration decisions

Foaming may cause amine carryover, unstable level control, increased maintenance, and reduced treating performance. We treat filtration as one part of the response rather than assuming that a filter change alone will resolve every foam event.

The decision depends on the suspected source. If testing identifies suspended solids as a contributor, particulate filtration may reduce the material circulating through the system. If free or dispersed hydrocarbons are involved, a separation or coalescing step may be more appropriate. If dissolved or organic contaminants are present, adsorption or another solvent-treatment method may need to be evaluated.

3. Review operating evidence before changing the filter

Operators should compare foam events with filter differential-pressure history, laboratory results, hydrocarbon carryover, solvent condition, and recent process changes. This is the evidence our engineers use to assess whether the proposed filter addresses the cause of the foam, reduces a contributing contaminant, or only treats a symptom of an upstream separation problem.

Assess Lean and Rich Amine Service Separately

1. Evaluate lean amine service

Lean and rich amine should not be treated as interchangeable filtration services.

Lean amine has been regenerated to remove the acid gases before returning to the absorber. Filtration in this part of the circuit may support solvent cleanliness, protect downstream equipment, or provide polishing after regeneration. Activated carbon beds are also typically installed on the lean amine side to remove traces of surface-active contaminants, hydrocarbons and organic compounds. The required capacity and contaminant profile depend on the specific location and the material entering the lean stream.

2. Evaluate rich amine service

Rich amine has contacted the sour gas and may carry solids, hydrocarbons, corrosion products, and other material from the absorber and upstream equipment. In particular, iron sulfide is one of the primary contaminants responsible for heat exchanger fouling in many amine systems, resulting from the interaction between carbon steel materials and hydrogen sulfide present in the sour feed gas. Poor filtered rich amine may also exhibit a distinctive green tint associated with iron sulfide particulate.

Specified particulate filtration is typically applied in the rich amine stream to remove suspended solids, reducing fouling and protecting downstream equipment.

Its loading can be higher or more variable, which may affect solids capacity, differential pressure, and element service life.

3. Define the filtration purpose

The filtration duty should be defined before selecting the equipment. The purpose of the filtration system may be solvent polishing, equipment protection, hydrocarbon control, protection of a downstream treatment step, or a combination of these objectives.

A useful specification identifies the stream as lean or rich, specifies the normal and peak flow rates, states the operating temperature and viscosity, describes the expected contamination, and defines the acceptable pressure-drop range. It should also explain whether the filter is intended to clean the solvent, protect equipment, or control a specific contaminant.

Describe Hydrocarbon Contamination by Physical State

1. Define the hydrocarbon condition

Hydrocarbon contamination is too broad to define a filtration requirement. The specification should state whether the target is free hydrocarbon, dispersed liquid, an emulsion, dissolved organic material, or another defined condition.

2. Match the treatment to the hydrocarbon state

Free and dispersed hydrocarbons may be addressed through separation or coalescing at a suitable location. Liquid hydrocarbons carried in the feed gas may be addressed through a phase separator and/or a gas-liquid coalescer before it enters the contactor. On the rich side, the flash tank removes most of the liquid and gas hydrocarbons. On the lean side, activated carbon beds may be used to remove surface-active contaminants including corrosion inhibitors, hydrocarbons and amine degradation products. The performance of that step depends on droplet size, phase behavior, viscosity, flow conditions, and the potential for re-entrainment.

Emulsified hydrocarbons can require additional process review because stable emulsions may not separate in the same way as free liquid. Selected dissolved organic contaminants may require adsorption, such as activated carbon, when testing confirms that this is the appropriate treatment path. Heat-stable salts and other ionic contaminants require separate solvent-treatment or reclamation review rather than a particulate filter alone.

Irrespective of how they enter a contactor system, C5+ hydrocarbons can condense from the sour gas into the rich amine stream and, depending on their concentration, may not be fully separated by the flash tank or, more typically, by the carbon bed on the lean amine side. Often, condensed hydrocarbons are emulsified making this contaminant particularly difficult to remove. It is therefore essential to minimise or completely eliminate liquid hydrocarbons from the feed gas before it enters the contactor and prevent them from circulating through the amine system.

This distinction prevents a filtration technology from being specified for a contaminant it cannot remove. It also helps procurement teams compare vendor proposals against the required outcome rather than against a product name alone.

3. Set a measurable outcome

The final specification should state the hydrocarbon form, the sample location, the inlet condition, and the desired outlet condition. This helps ensure the selected separation, coalescing, or adsorption treatment is matched to the actual hydrocarbon contamination.

Use Operating Data to Set Differential Pressure and Service Life

1. Define the operating envelope

Sizing and replacement decisions should use the complete operating envelope. Relevant inputs include normal, minimum, and maximum flow, operating temperature, viscosity, contaminant loading, turndown conditions, and allowable differential pressure.

2. Track differential pressure over the service interval

Differential pressure should be tracked from the clean condition through normal operation and up to the agreed change-out point. A rising trend may indicate increasing contaminant loading and filter blockage, which may lead to shorter element life and more frequent change-outs.

3. Review the used element

Service life should be based on operating evidence rather than a calendar interval alone. Used-element inspection can show whether the existing filtration system is operating effectively under the original operating conditions or whether its performance should be reassessed.

If process conditions change, such as circulation rate, contaminant loading, gas composition, upstream separation, corrosion rate, solvent condition, or maintenance practice, the original specified filter may no longer be suitable for the current duty. Before reordering an element by part number, communicate any changes in operating conditions to the filtration manufacturer, compare the current process data with the original design basis and review the used element.

4. Monitor amine and activated carbon condition

The life of the activated carbon must be monitored and this is primarily done by visually inspecting the amine samples taken at the inlet and outlet of the carbon bed filter. There should be a perceptible colour change, with the treated amine appearing clearer, and a reduction of amine foaming tendency across the carbon filter.

Cleanova can review housing suitability, element condition, differential-pressure history, operating data, and replacement requirements before an existing configuration is reordered by part number. This helps determine whether re-elementing is sufficient or whether the filtration arrangement needs to be reassessed.

How Cleanova Supports Amine Unit Filtration Selection

The final filtration decision should be based on the complete application, not a micron rating or amine chemistry alone. Contaminant type and loading, particle-size distribution, foaming history, hydrocarbon state, flow and temperature, filtration location, differential pressure, service life, and material compatibility all contribute to the right filtration strategy.

That application-specific approach is central to how Cleanova supports amine unit filtration. Our engineers evaluate process, contamination and operating data to define the filtration duty, assess whether an existing configuration remains fit for service, and determine where filtration should work alongside separation or other treatment steps.

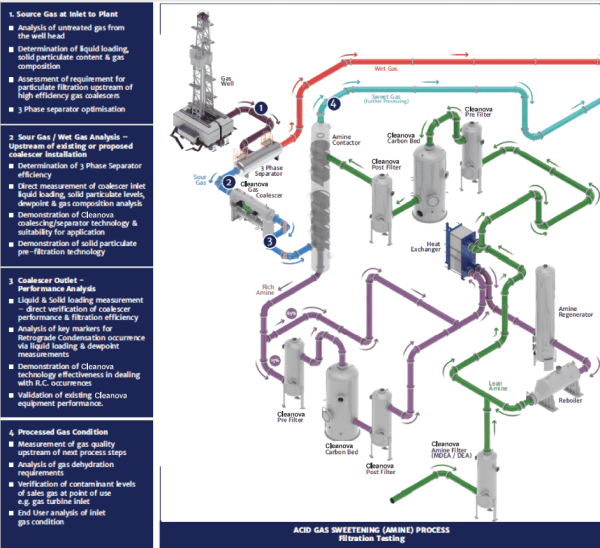

Having specific data available on contaminant load entering and present within an acid gas removal unit system (AGRU) is crucial to delivering the optimal performance from any gas sweetening system. Cleanova’s bespoke filtration test rigs can assess both sour gas feeds and liquid amine flows in one package, helping identify the source of the contaminant in the system and enables focused solutions to resolve these issues.

For activated carbon beds, Cleanova can also assess remaining effective life through direct measurement of the carbon iodine number. A higher iodine number indicates a greater capacity of the carbon bed to absorb hydrocarbons and organic compounds.

The goal is not simply to select a filter. It is to develop a filtration approach that supports solvent quality, protects critical equipment, manages contamination, and provides predictable performance over the operating life of the system.

For application-specific review of lean or rich amine service, Cleanova provides the filtration expertise and engineering perspective.
